Absolute Pressure Sensor
Absolute Pressure Sensor
Barometers
SS-PS-AV is designed for accurate measurement of barometric pressure. It is a highly accurate pressure sensor with an accuracy of ±0.1 hPa and having a resolution of 0.01 hPa. It comes with three pressure transducers and selectable display parameters including QFE and QNH. With its compact size and simple design, it can be installed on a variety of AWS, AWOS and Hydromet systems. For easy integration with data loggers, it supports various communication interfaces including RS232, USB and LAN.
Features
- Three pressure transducers
- Low power dissipation
- High accuracy
- QFE and QNH display
- IP66
Description
Technical Specifications
| SS-PS-AV | |
| Sensor Type | Class A |
| Measurement Range | 500 to 1100 hPa |
| Accuracy | ± 0.1 hPa |
| Resolution | 0.01 hPa |
| Output | RS232/485, USB, LAN |
| Stability | <0.2 hPa/year |
| Response Time | 1 Sec |
| Display | 3.0″ OLED |
| Calibration cycle | 1 Year |
| ESD Protection | ±25KV |
| IP Class | IP66 |

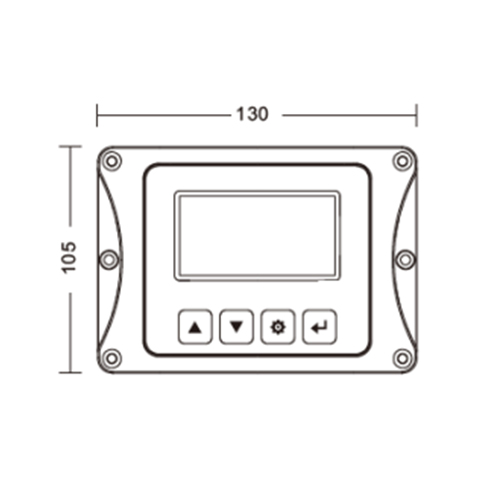

| Dimensions | 130x105x50 mm |
| Weight | 500g |
| Power | 85mA@12V during screen off mode |
| Operating voltage | 7 to 24 VDC |
| Operating temperature | -40 to +60 °C |
| Operating humidity | 5% to 100% RH |
