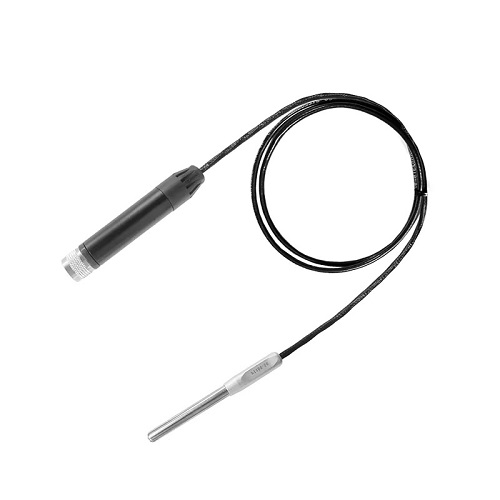

Air Temperature Sensor
A precision digital temperature probe with accuracy up to ±0.1°C (RTD 1/3 DIN). The platinum temperature resistor can achieve excellent long-term stability. With the direct measurement of the digital temperature output is a cost -effective choice for meteorological observation systems, civil aviation, marine, plant protection, agriculture, etc. Also available with 4-wire platinum resistance analog output.
Features
- Temperature Sensor PT100 RTD.
- Accurate Temperature measurements (0.1°C).
- High long-term stability.
- Analogue and Digital outputs depending upon models.
- Highly efficient radiation shield.
- Design and performances addressed to meteorological applications.
Applications
Weather Stations, Agriculture, etc.
Description
Technical Specifications
| SS-AT-01 | SS-AT-02 | |
| Temperature Measuring Range | -50 °C to +150 °C | -50 °C to +150 °C |
| Output | Digital: RS485 | Analog: 4-wire platinum resistor 0.385Ω / ℃ |
| Input Power | 5 – 28 VDC | 5 – 28 VDC |
Common Technical Specifications
| Temperature | Sensor Type | PT100 1/3DIN |
| Accuracy | ±0.1 ℃ (@23 ℃ ± 2 ℃), ±0.2 ℃ (Full Scale) | |
| Resolution | 0.01 ℃ | |
| Long Term Stability | <0.1 °C/Year | |
| General Specifications | ESD Protection | ± 25 KV |
| Cable | 2m Standard | |
| Protection (without shield) | IP64 | |
| Storage Temperature | -60 °C to +90 °C | |
| Housing | ABS+PC, flame resistant, toxicity and halogen free | |
| Dimensions (Probe only) | Φ 8 x 74.4 mm | |
| Weight (Probe only) | 16g |
Thermo-Hygrometer
Accessories
 |

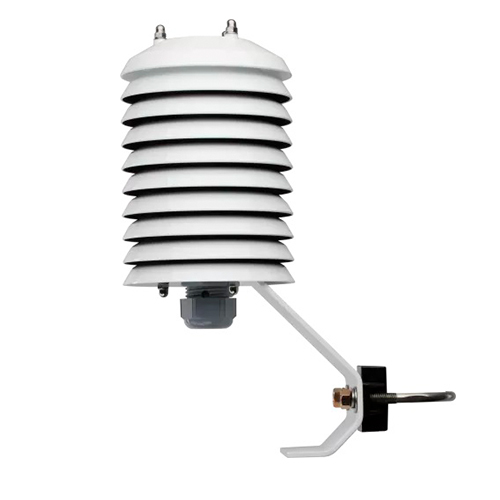

SS-TH-RS | SS-TH-RS is a natural ventilated all weather radiation shield made of 10 nos. thermoplastic louvered plates. Complete with all accessories such as aluminium mounting bracket (boom) with suitable provision for fitting shield on the boom at desired heights and stainless-steel U bolt clamp. |
| Calibration Certificate | Calibration certificate from India Meteorological Department or any other NABL accredited national laboratory. | |
| SS-TH-C1 | 3m Cable. | |
| SS-TH-C2 | 5m Cable. |
